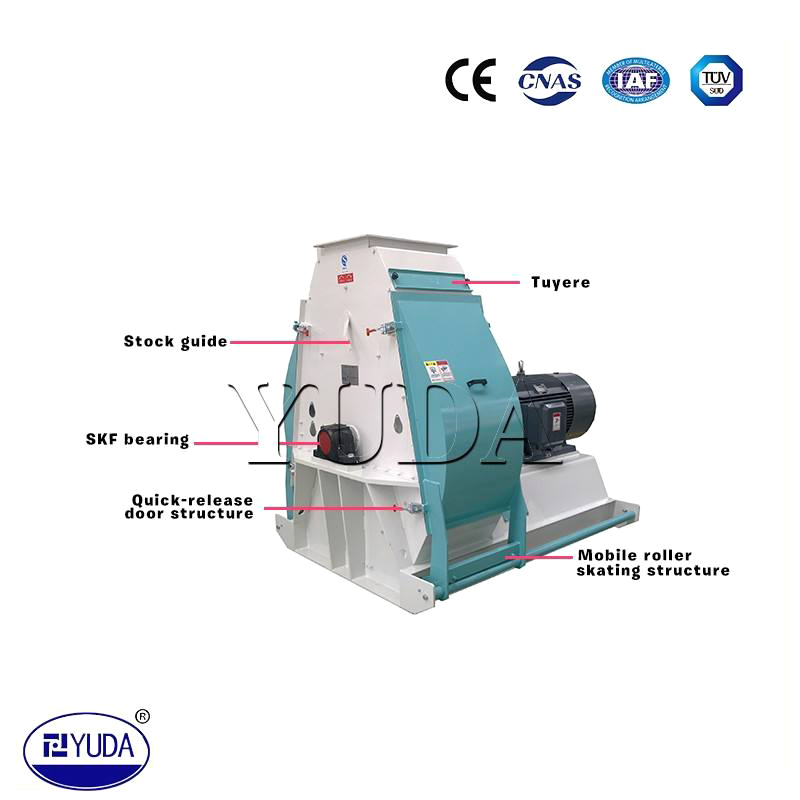

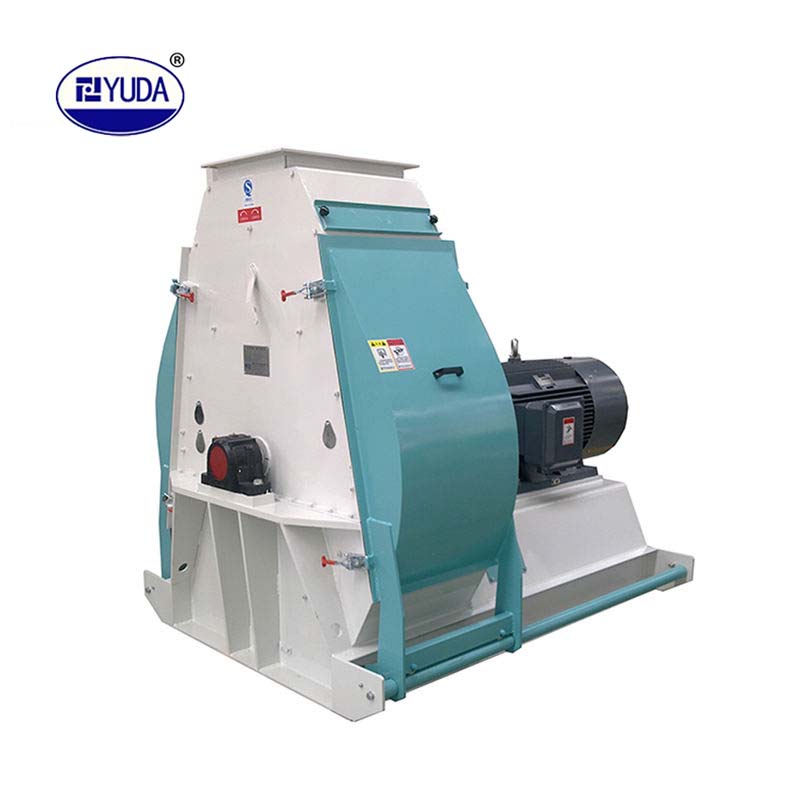

SFSP Series Drop Shaped Hammer Mill

This series hammer mill can crush many kinds of pellet materials like, corn, sorghum, wheat, beans, broken cakes etc. They’re specially designed for fibrous raw materials, raw materials with high oil content and finely pulverized materials. They’re indispensable equipment for the powder factory in the feed mill processing.

inquiry contact us Download

PREV：SFSP66X80 Series Hammer Mill 3.5T/H-16T/H
NEXT：SFSP Series Pasture Hammer Mill

Features

● It is easy to achieve two functions of thickness and crushing;

● The shape of the drop can reduce the possibility of material agglomeration;

● Drop-shaped screen installation form, the largest discharge area, can make the material screen faster, improve the output;

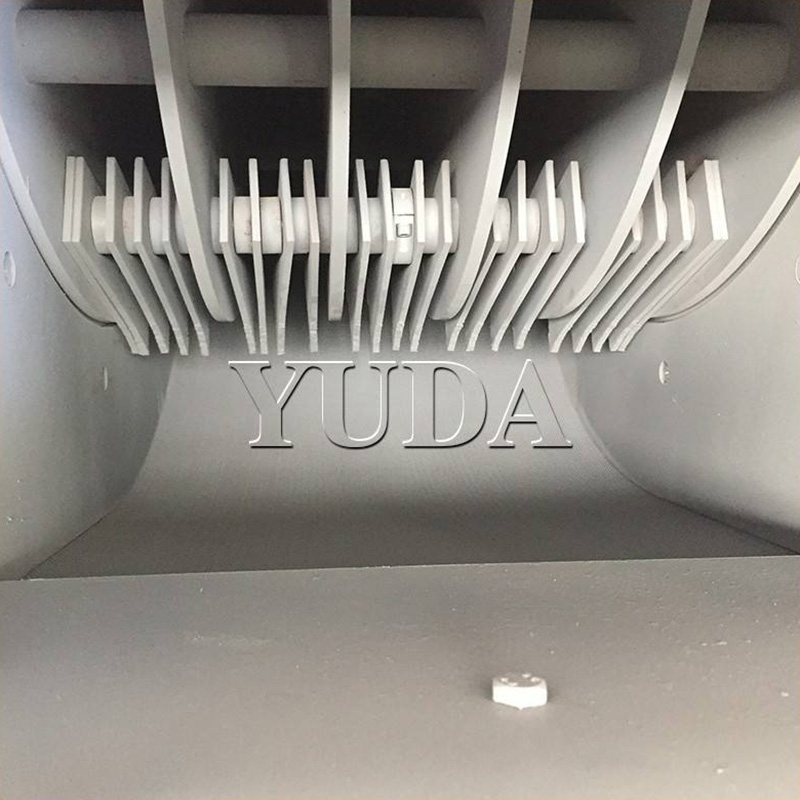

● Built-in rotor structure to reduce coarse material into the finished product;

● Re-grinding chamber effectively destroys the material circulation layer and improves the crushing efficiency;

● The base is welded with thick steel plate;

● Wear-resistant replaceable parts and double wear-resistant plates are used in the pulverizing chamber and material contact parts.

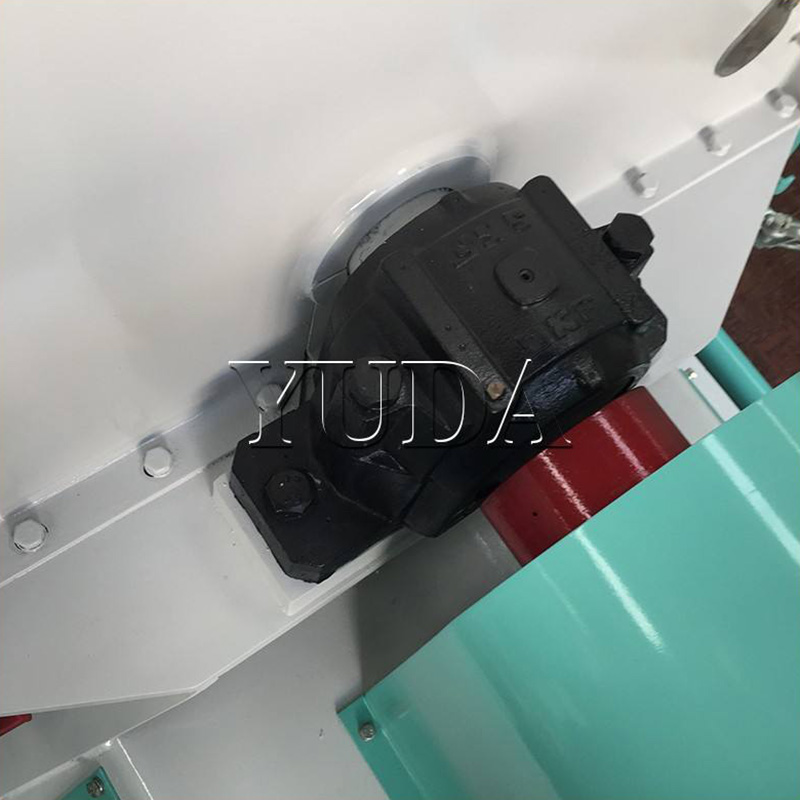

● Use high quality imported bearings to ensure the reliability of the main engine operation.

Model Information

Model	Power (KW)	Capacity (T/H)	Rotor diameter (MM)
SFSP112*30	55/75	6-12	1120
SFSP112*38	90/110	8-16
SFSP112*50	110/132	10-20
SFSP112*60	110/132/160	13-25
SFSP112*75	132/160/200	18-32
SFSP120*40	75/90	11-22	1200
SFSP120*50	90/110	18-33
SFSP120*60	132/160	24-40
SFSP120*80	200/220	38-55
SFSP138*40	75/90/110	8-20	1380
SFSP138*50	90/110/132	12-22
SFSP138*60	110/132/160	16-28
SFSP138*80	160/200	20-32
SFSP138*80	220/250	28-38
