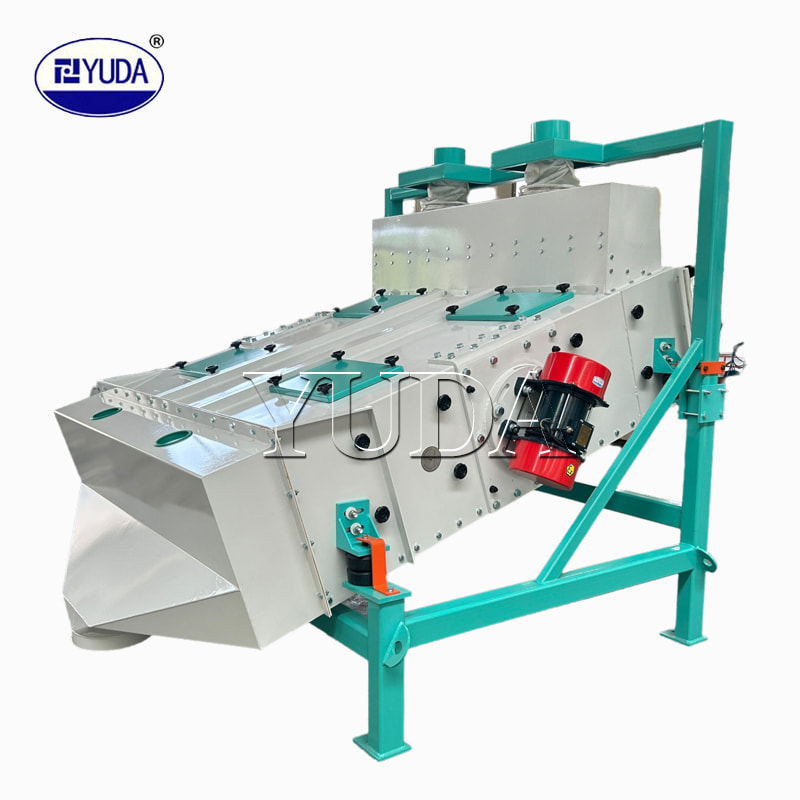

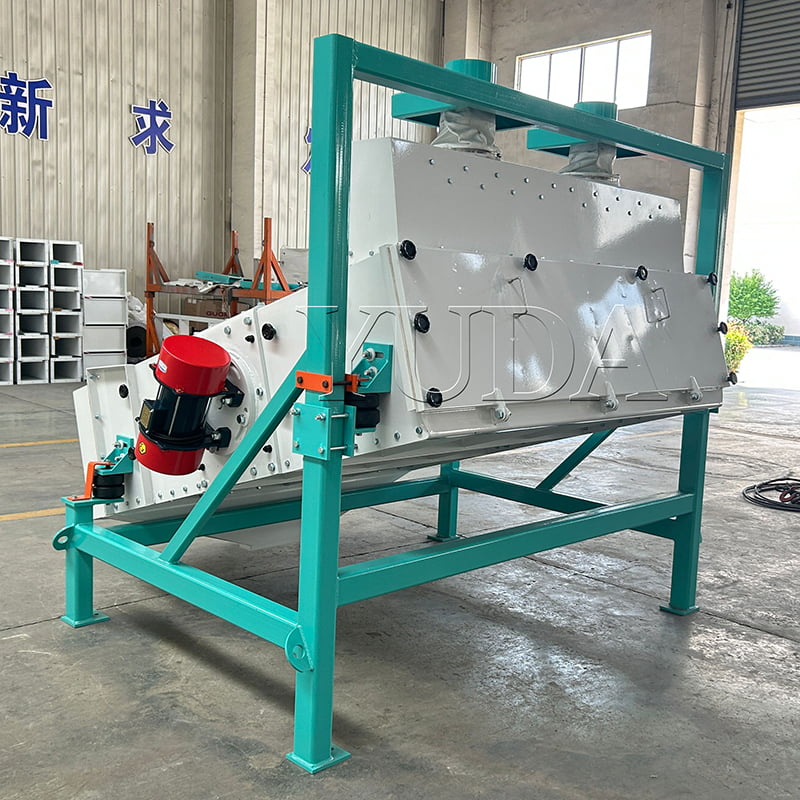

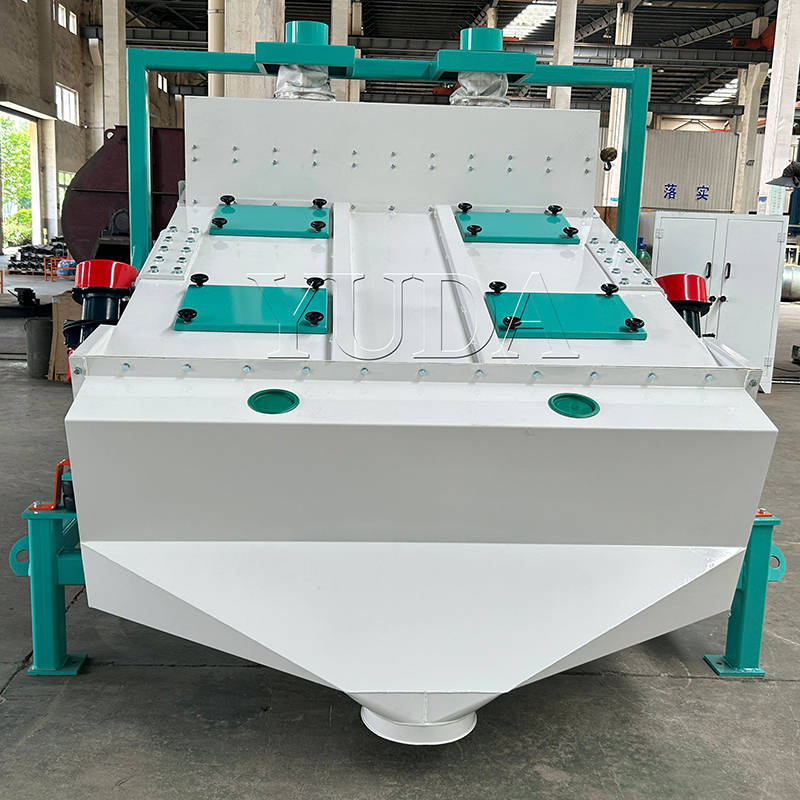

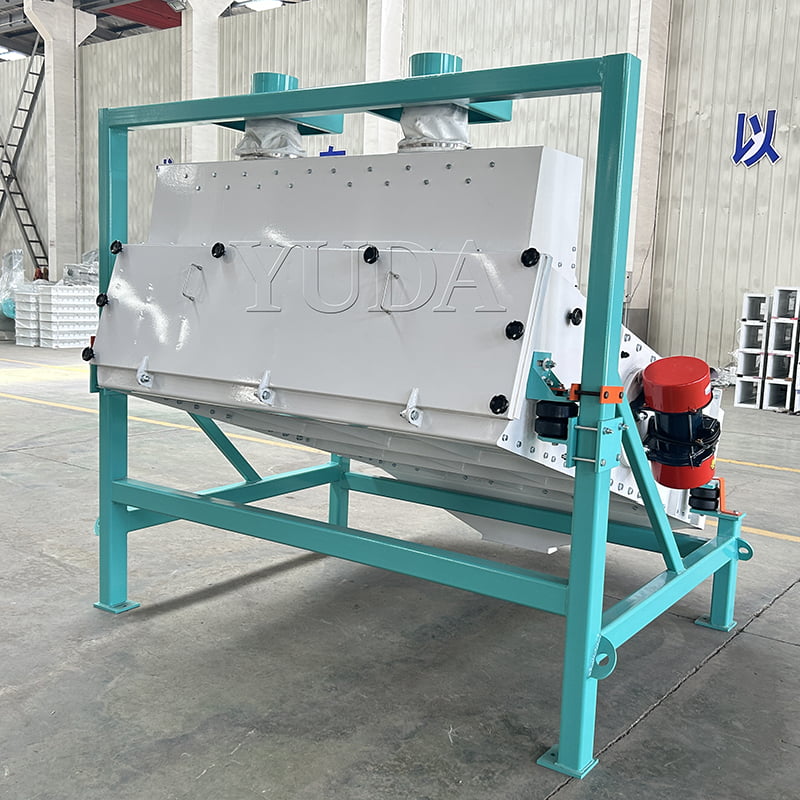

TQLZa Vibrating Cleaning Screen

This machine is suitable for preliminary washing and cleaning of raw grain, widely used in milling, feed, chemical, food, oil and fat extraction and other industries. By replacing the sieve plate with different apertures, it can clean many kinds of granular materials such as wheat, corn, rice, oil seeds and so on.

The machine has two-deck sieve and three-deck sieve for choice, three-deck sieve (3C sieve) is a newly developed product of our company according to the demand of customers, no need to change the sieve plate, one machine can clean two kinds of materials at the same time (such as corn and wheat).

Features

● Cleanable materials: wheat, rice;

● High output, high efficiency, low power consumption, good cleaning effect, smooth operation and low noise;

● Adopt whole frame type, effectively solve the problem of cracking and welding of sieve body;

● The angle of inclination of screen surface can be adjusted within 0-12°;

● Adopt upper and lower double-deck screen mesh, can be customized three-deck screen mesh vibrating screen;

● Screen mesh replacement is convenient and quick;

● Can choose to use with vertical suction duct or self-circulating air system, the effect is better;

Model Information

Data/Model	Capacity (t/h)	Sieve surface inclination angle (degrees)	Power KW	Sieve size Width×Length	Size L×W×H(mm)
TQLZl00×150	10一15	8—12	2×0.25	1000×1500	2140×1610×1862
TQLZa l00×150	10一15	8—12	2×0.25 1.5+0.75	1000×1500	3000×1850×3500
TQLZ100×200	15—20	8一12	2×0.37	1000×2000	2640×1610×1962
TQLZa l00×200	15—20	8一12	2×O．37 1.5+0.75	1000×2000	3500×1850×3500
TQLZ150×200	30—40	8一12	2×0.75	1500×2000	2690×1995×1962
TQLZa 150×200	30—40	8一12	2×0.75 2×1.5+0.75	1500×2000	3750×2500×3650
TQLZl80×200	50—60	8-12	2×0.75	1800×2000	2690×2310×1962
TQLZa l80×200	50—60	8-12	2X0.75 2×2.2+0.75	1800×2000	3750×2800X3720
TQLZ l80×270	50—60	8-12	2×1.5	1800×2700
TQLZ200X200	50-80	8-12	2×1.1	2000×2000	2690×2550×1870
TQLZa 200X200	50-80	8-12	2×1.1 2×2.2+0.75	2000×2000	3750×3000×3720
TQLZ150×270	70-100	15	2×1.5	1500x2700	3020x 1900×2440
TQLZa 150×270	70-100	15	2×1.5 2×2.2+0.75	1500x2700	4000×2500x4500
TQLZ150×270-3C	50-80	15	2×1.5	1500X2700	3120×1900X2580
TQLZa l50×270-3C	50-80	15	2×1.5 2×2.2+0.75	1500X2700	4000×2500X4500
