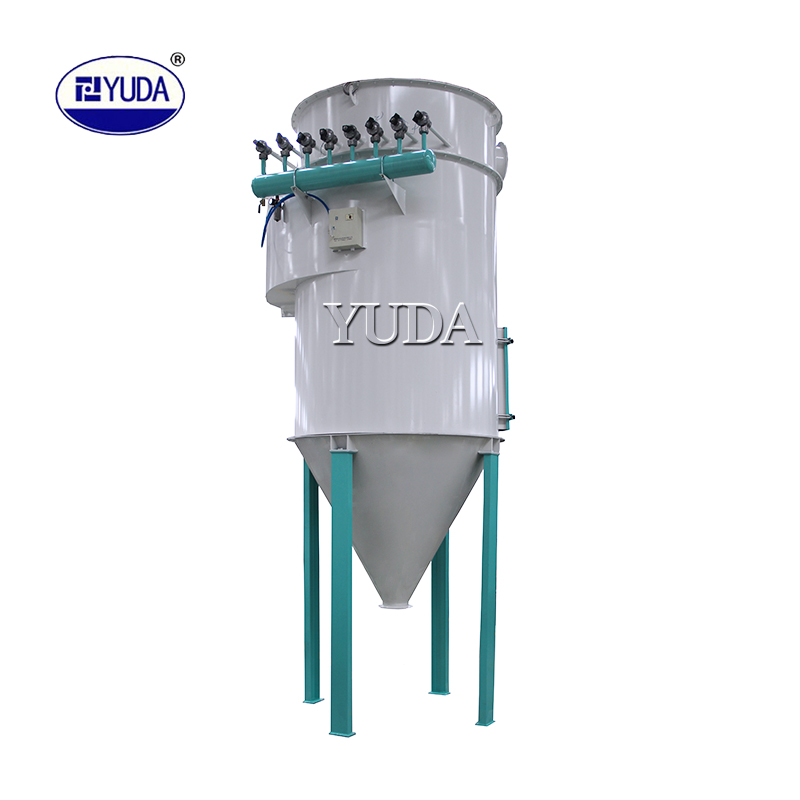

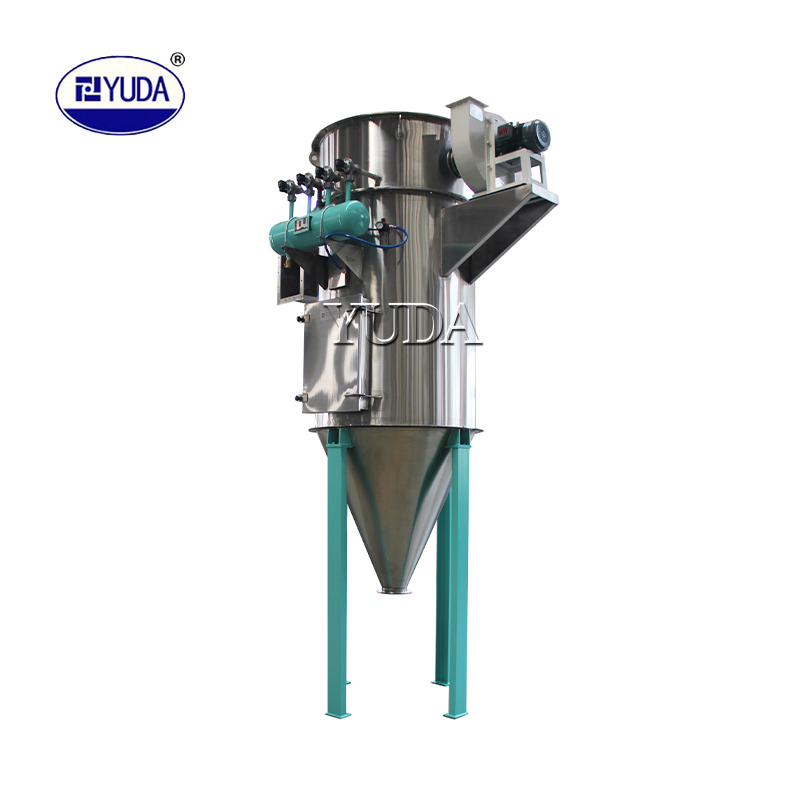

YBLMy type high pressure cylinder pulse dust collector use large tangential centrifugal air intake, cylindrical body box, long conical bucket feeding, equipped with cylindrical filter bag and unique pulse injection device, it possessed with low equipment resistance, light filter bag load, large processing air volume,high dust removal efficiency, compact structure and other advantages.
This machine is suitable for single or centralized dust removal and dust removal in pneumatic conveying in food and feed industry, and is also used on dust recovery and filtration in other industries.
1. flexible process layout, cover a little area.
2. One solenoid valve can control multiple cloth bags.
3. High dust removal efficiency, multi-function selection of dustremoval cloth bag: ultra-fine, temperature-resistant, resistantWet, antistatic, etc.

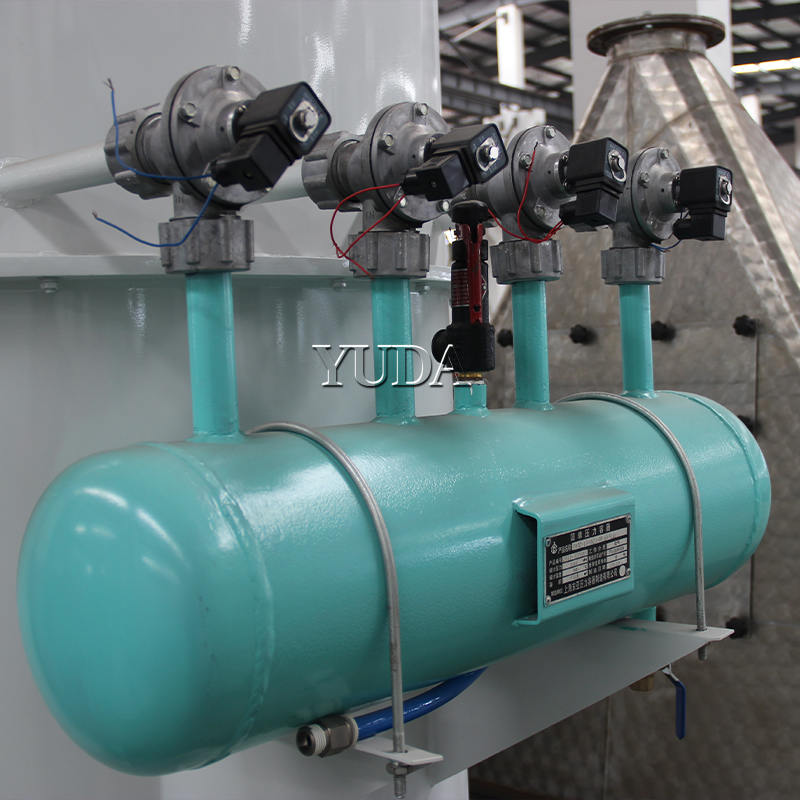

4. The special circular airbag with straight solenoid valve reduce the damage of the solenoid valve diaphragm, stable and reliable work.
5. The new practical patent technology, original structure, compact process.
Model |
TBLMy9 |
TBLMy12 |
TBLMy15 |
TBLMy18 |
TBLMy26 |
TBLMy39 |
TBLMy52 |
TBLMy72 |
TBLMy78 |
Bag (pc) |
9 |
12 |
15 |
18 |
26 |
39 |
52 |
72 |
78 |
Filtering Area (m²) |
3.7/5.5/7.4 |
5/7.3/9.9 |
6.2/9.2/12.3 |
7.4/11/14.8 |
10.7/15.9/21.3 |
16/23.8/32 |
21.3/31.8/42.7 |
29.4/44.1/58.8 |
32/47.6/64 |
Air Flow (m³/h) |
660~1300 |
900~1800 |
1100~2200 |
1300~2660 |
2000~3800 |
2900~5800 |
3800~7700 |
5300~10600 |
5800~11500 |
Compressed Air Pressure (Mpa) |
0.5~0.7 |
||||||||
Pulse Width (s) |
0.01~0.5 |
||||||||
Pulse Interval (s) |
3~90 |
||||||||
Dedusting Efficiency % |
≥99.8 |
Liyang Yuda Machinery Co.,Ltd is China YBLMy Pulse Dust Collector Manufacturers and YBLMy Pulse Dust Collector Company . The company has introduced a complete set of world-class technology CNC laser cutting machines, automatic profile sandblasting equipment, automatic welding machines, large-scale shearing and bending equipment, CNC lathes, etc. Undertake various types and scales of complete turnkey projects for feed, including complete plant planning, design, equipment manufacturing, installation and commissioning, and personnel training.
Technology and quality are the life of YUDA; the company adheres to the business philosophy of "honesty and quality", strict quality control, relying on strong scientific research, "integrity, pragmatism, pioneering and innovative". "Intelligent" manufacturing is in a leading position in the domestic and foreign industries.
