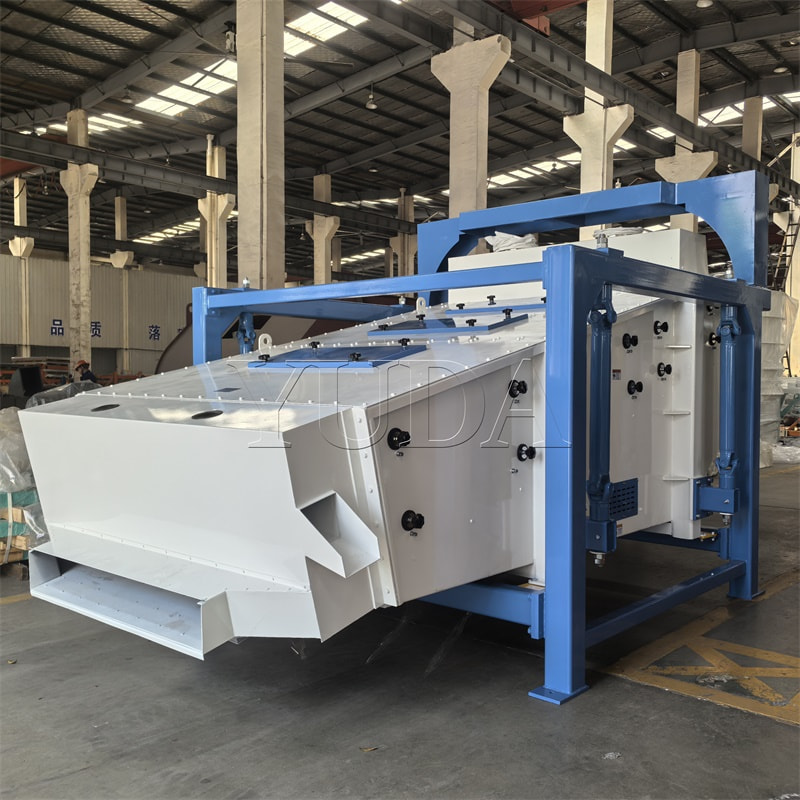

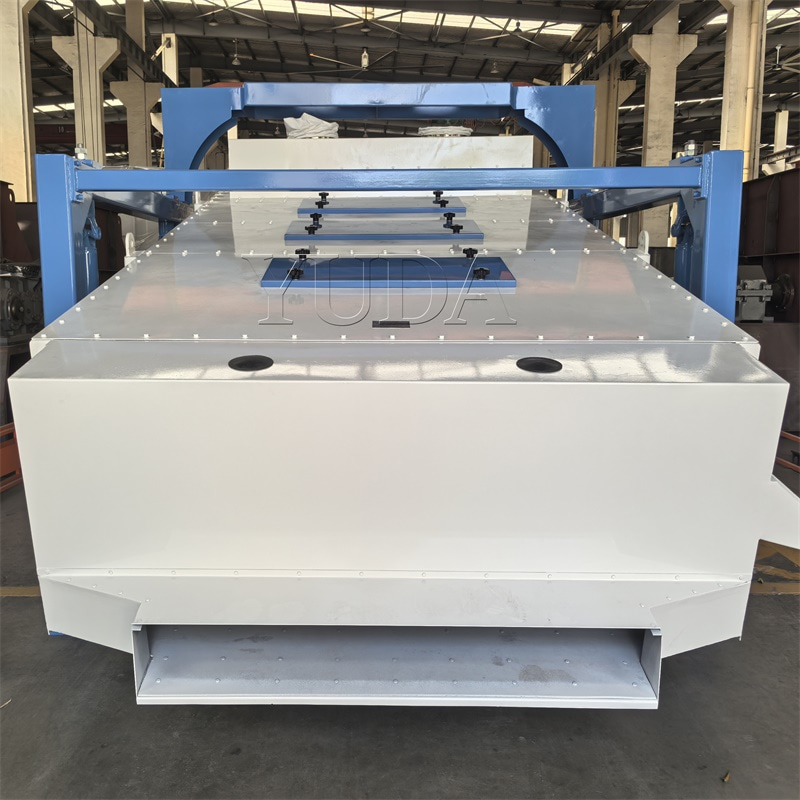

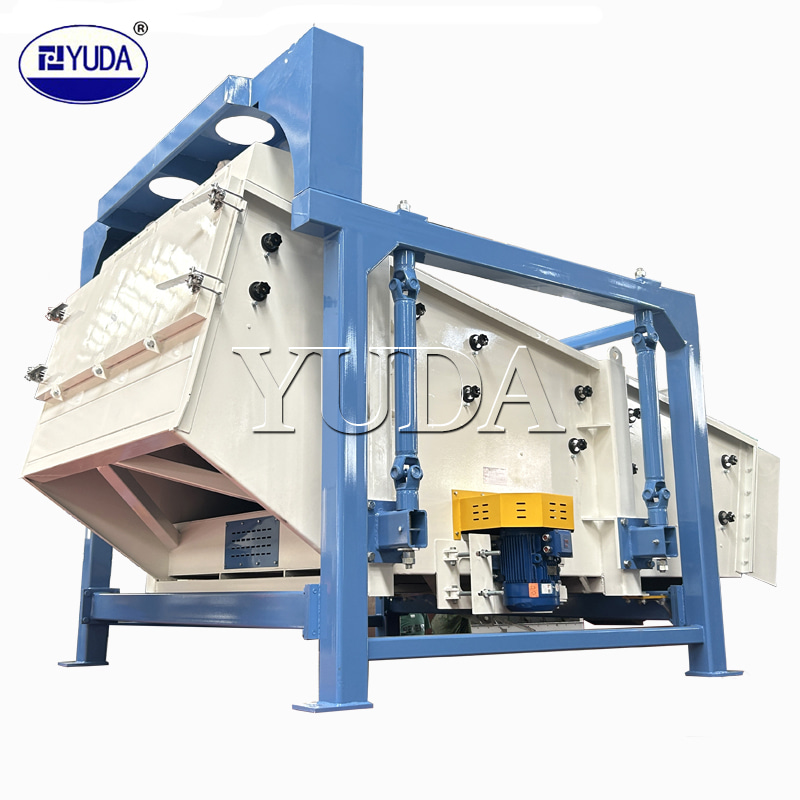

TQLZ Series High Efficiency Rotary Vibrating Screen

This machine is suitable for the initial cleaning and cleaning of raw grains, and is widely used in industries such as miling, feed, chemical, food, and oil extraction. By replacing sieve plates with different apertures, various granular materials such as wheat, corn, rice, and oil can be cleaned.

This machine has a simple structure, smooth operation, good cleaning effect, large output, sturdy design, smooth planar rotation motion, low noise, and can be flexibly used with various types of air separators to remove light impurities and achieve beter cleaning effect.

Features

● High-efficiency screening: adopting the principle of three-dimensional rotary vibration, the screening efficiency is 20%-30% higher than that of ordinary vibrating screen, and the handling capacity is large.

● Multi-layer classification: 1-5 layers of screen mesh can be configured to synchronize the realization of multi-level classification (e.g. separation of coarse, medium and fine particles).

● Closed and environmentally friendly: fully enclosed structure design, preventing dust spillage, in line with environmental protection and safe production requirements.

● Low energy consumption and durability: the motor power is small, low energy consumption; the screen mesh is made of stainless steel or wear-resistant alloy, with long service life.

● Easy maintenance and cleaning: quick release screen design, easy to replace and clean, reduce cross contamination.

● Intelligent adjustment: some models support adjustable amplitude and vibration frequency, adapting to different material characteristics (such as humidity, viscosity).

Model Information

Model	Capacity （t/h）	Sieve surface inclination angle (degrees)	Power (kw)	Sieve size W×L (mm)	Size L×W×H (mm)	Weight（kg)
TQLZ100×150	10-15	8-12	2×0.25	1000×1500	2140×1610×1862	/
TQLZa100×150	10-15	8-12	2×0.25 2.2+0.75	1000×1500	3000×1850×3500	/
TQLZ100×200	15-20	8-12	2×0.37	1000×2000	2640×1610×1962	900
TQLZa100×200	15-20	8-12	2×0.37 2.2+0.75	1000×2000	3500×1850×3500	900
TQLZ150×200	30-40	8-12	2×0.75	1500×2000	2690×1995×1962	1050
TQLZa150×200	30-40	8-12	2×0.75 2×2.2+0.75	1500×2000	3750×2500×3650	1800
TQLZ180×200	50-60	8-12	2×0.75	1800×2000	2690×2310×1962	1300
TQLZa180×200	50-60	8-12	2×0.75 2×2.2+0.75	1800×2000	3750×2800×3720	2750
TQLZ200×200	50-70	8-12	2×1.1	2000×2000	2690×2550×1870	1500
TQLZa200×200	50-70	8-12	2×1.1 2×2.2+0.75	2000×2000	3750×3000×3720	2950
TQLZ150×270	50-70	15	2×1.5	1500×2700	3020×1900×2440	2200
TQLZa150×270	50-70	15	2×1.5 2×2.2+0.75	1500×2700	4000×2500×4500	4180
TQLZ150×270-3C	50-70	15	2×1.5	1500×2700	3120×1900×2580	2500
TQLZa150×270-3C	50-70	15	2×1.5 2×2.2+0.75	1500×2700	4000×2500×4500	2500
TQLZ180×270	80-100	15	2×1.5	1800×2700	3120×2500×2490	2500
TQLZ180×270-3C					3215×2500×2580	3000
TQLZ180×270-4C					3215×2500×2640	3650
TQLZ200×270	100-120	15	2×1.5	2000×2700	3120×2500×2490	2900
TQLZ200×270-3C					3215×2500×2580	3500
TQLZ200×270-4C					3215×2500×2640	4100
